Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit

Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit
Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit Yaesu 8 Band Voice Equilizer and Voice Compressor Controller Unit
Brand: Yeasu
Product Code: YAESU-EX
Availability: 1
Price: $169.99
Qty:     - OR -   Add to Wish List
Add to Compare











LAST ONE!! +++  BRAND NEW

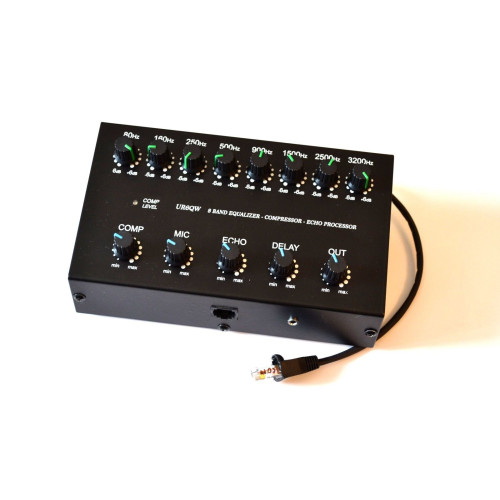

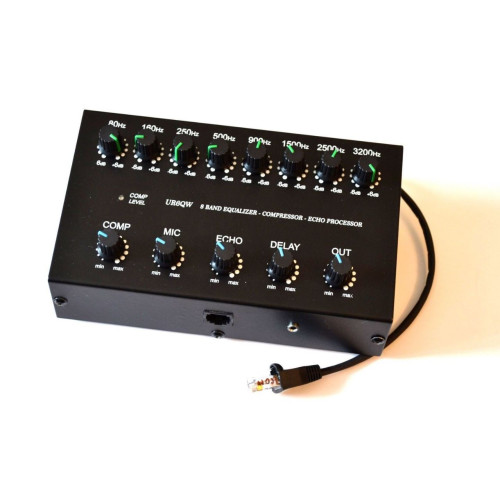

8 Band Voice Equalizer + Sound Compressor + Echo Processor to the YAESU Mobile Radios

( Fits All Mobiles models: FT-2980-R - FTM-3207 - FTM-3200D - FT-3100-FT2800-FT-2900-FT1802-FT-1807-FT-1902 - FT-7800-FT-7900-FT-8800-FT-8900 and more..





8 Band Voice Equalizer + Sound Compressor + Echo Processor to the YAESU Radios





This unit can be used with most type of YAESU radios with

RJ-11 ( 6 pin) microphone connector only!

Requires a DC Power Supply ( Small AC Adaptor 9-12Volts is fine) to feed this device. It can be the power supply from 8 to 15 volts current 30ma via standart RCA socket.

Easy to use!!! Just connect this Sound Processor to the RJ-11 mic connector on your YAESU radio, give a supply from 8 to 15 volts and it is ready to work. Then turning the pots on its panel just get an excellent quality of your signal. To use the compressor pot in DX pile ups. Echo prosessor will make your signal special and selected.









Technical data:

 Microphone low noise amplifier with input and output level pots.

Echo prosessor with regulation of delay.

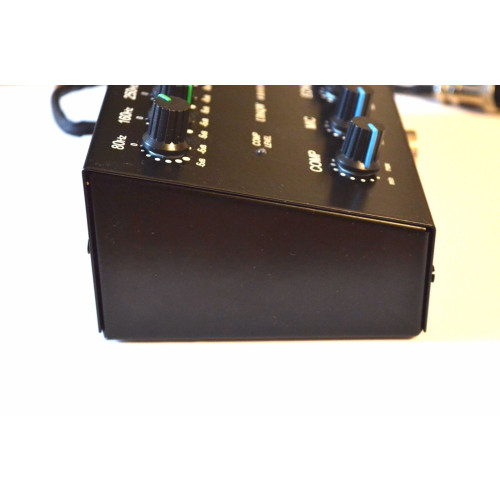

Slanted front panel for more comfortable operation with it.

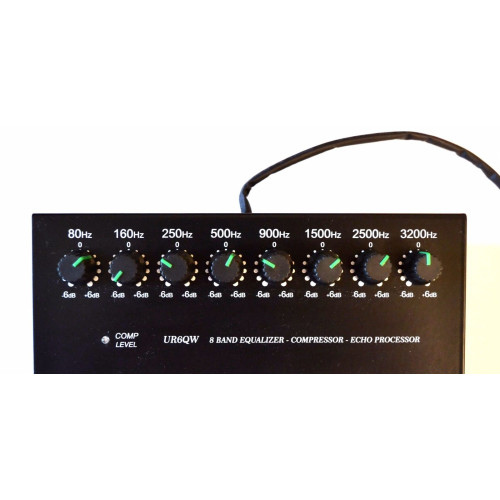

 Voice 8 band Equalizer with pots on 80 / 160/ 250 / 500 / 900 / 1500 / 2500 / 3200 Hz.

Strong steel case - reliable protection against external noises.

Good workig with HIGH OUTPUT POWER up to 2kWt.

Working UP DOWN control of the radio by Mic's knobs.

Has add mic input MINI-JACK for easy use of computer typeface, HEIL microphones and etc.

 Compression level led

 Microphone Compressor level pot

 Size 180 mm x 100 mm x 50 mm

 Weight - 0.63 kg





8 band EQ

Sound 8-band Equalizer

with compressor, low noise preamp

and Echo effect processor to transceiver









        8-band EQ with a compressor, adjustable microphone amplifier and Echo effect is housed in a good looking matte black metal casing, slanted front panel with silk screened scales that doesn’t rub off. At the bottom of the housing rubber feet.
Thanks to its flexible input, compression and output level controls equalizer works with any type of transceiver and it is specifically designed for SSB audio with a bandwidth of of 3-4 kHz. Right from the 8-pin pole set connector 3.5mm for Heil company microphone. But we can set other jack, what you wish (like 6.3mm or RCA for PTT (on back side), is optional). Good workig with HIGH OUTPUT POWER up to 2kWt.  Create that full range HiFi sound with emphasis on the low end, or bust pileups with a higher pitched sound and more compression, with the 8 band Equalizer the choice is yours.



Technical data

Voice 8 band Equalizer with pots on:

80 / 160/ 250 / 500 / 900 / 1500 / 2500 / 3200 Hz

Protection against a polarity reversal (if an external source)

Echo prosessor with regulation level and  delay 30-300 ms

Adjustable microphone low noise amplifier, range 0-25dB

Working UP DOWN control of the radio by Mic’s knobs

Power Supply Requirement — 8 — 16V DC

Size 180 mm x 100 mm x 50 mm

Power Consumption — 30mA

Compression level led

Weight — 0.63 kg
